Emergency Lighting » LED Self-Contained Emergency Lights » 8200-Series »
8203 Range
Product Number:

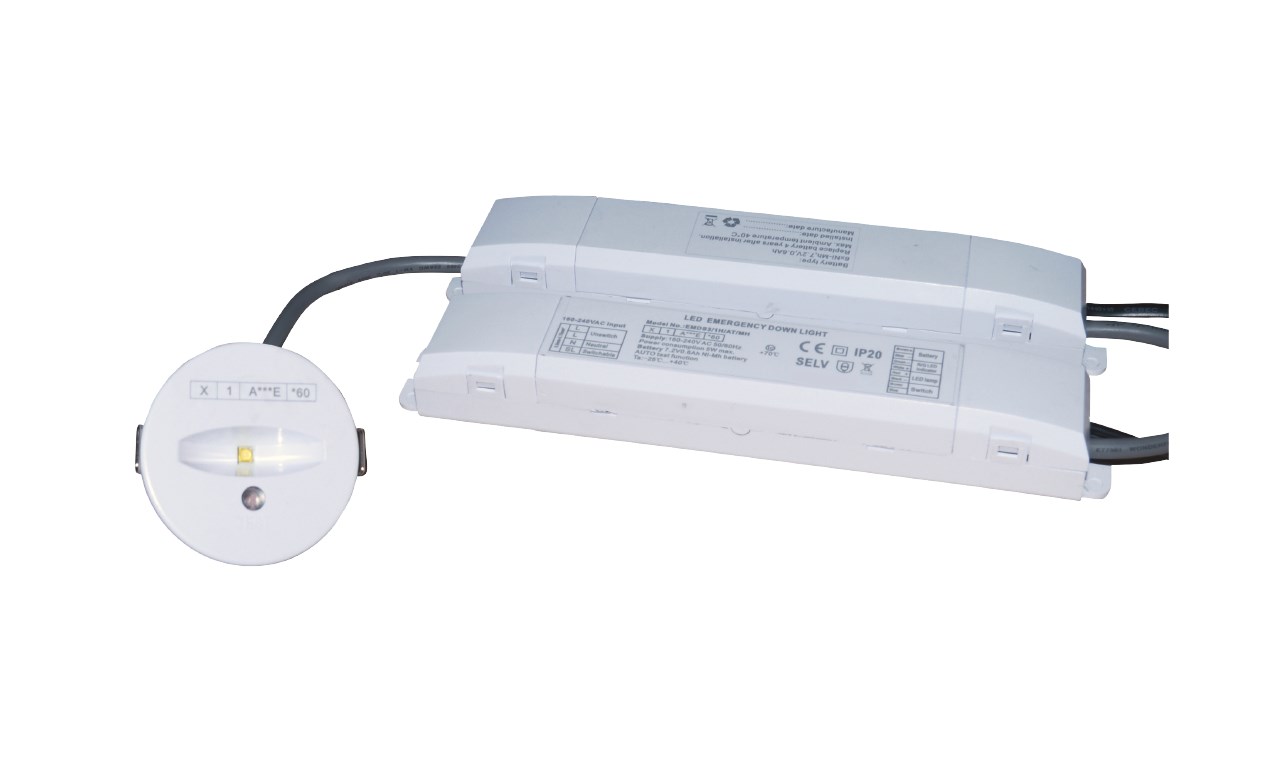

8203 series of LED emergency lights are micro in size, sleek, flush mounted and has option for switched maintained mode of operation for all models. With power consumption of only 5.5 watts, 90 degrees beam angle, and 180 lm flux output, this range of luminaires are the first choice of architects as the same model can be used for anti-panic and exit route lighting.
This series comes with options for one hour & 3 hours battery stand-by time, and has various models with options for selfcontained manual testing, self contained auto testing and DALI monitored self contained luminaire.
Order Inquiry
Description
8203 series of LED emergency lights are micro in size, sleek, flush mounted and has option for switched maintained mode of operation for all models. With power consumption of only 5.5 watts, 90 degrees beam angle, and 180 lm flux output, this range of luminaires are the first choice of architects as the same model can be used for anti-panic and exit route lighting.
This series comes with options for one hour & 3 hours battery stand-by time, and has various models with options for selfcontained manual testing, self contained auto testing and DALI monitored self contained luminaire.
Features
- Polycarbonate trim plate and die casting heat sink.
- Polycarbonate housing for LED driver and battery.
- LED self contained luminaire with manual test, AUTO test and DALI interface available.
- Ni-MH battery.
- Special reflector design suitable for escape pathway.
- Cut hole 42-50mm.
- RoHS compliance.
Specification
| Technical Spcification | |
| Rated Power Supply | 220-240VAC 50/60Hz |
| Power consumption | Max. 5.5W |
| Charge time | hours |
| Discharge duration | hour/3 hours |
| Changeover voltage | 144-187VAC |
| Test facility | Manual test ,AUTO test, DALI interface |
| Operation | Non-maintained and Switched Maintained. |
| Mounting | Ceiling recessed mounting |
| Lighting source | LED, 6500K |
| Normal flux | lm |
| Degree of protection | IP20 |
| Insulation Class | Class II |
| Ambient temperature | 0C – +25C |
| Certification | CE, CB, SAA, C-tick, TUV |
Default
Description
Description
| Model List | |||||
| Part num-
ber |
Duration facility Test Operation (Hour) | Battery | Flux (lm) | ||
| 8203-3DH | 1h | Manual test | Switched-maintained
& Non-maintained |
Ni-Mh 7.2V600mA | 180 |
| 8203-1AH | 1h | Auto test | Ni-Mh 7.2V600mA | 180 | |
| 8203-3MH | 3h | Manual test | Ni-Mh 7.2V1200mA | 180 | |
| 8203-3AH | 3h | Auto test | Ni-Mh 7.2V1200mA | 180 | |
| 8203-1DH | 1h | DALI | Ni-Mh 3.6V1300mA | 180 | |
| 8203-3DH | 3h | DALI | Ni-Mh 3.6V2600mA | 180 | |
Description
Downloads
| 8203 - EL -Datasheet | (522.79 KB) |
|
