9105 Series
EMERGENCY EXIT SIGN
Product Number:
9112 series of LED EXIT lights are wall mounted with option for wall flush mounting, making it suitable for final exit and also where exit signs are required directly above exit doors. Power consumption is low at only 3.5 watts, with the sleek decorative finish of Dynamic Pro.
This range has self contained models with manual or auto test options, and has battery option of 1 hr or 3 hrs standby time. The DALI models come with 3 hrs of battery stand by time.
9112 series of LED EXIT lights are wall mounted with option for wall flush mounting, making it suitable for final exit and also where exit signs are required directly above exit doors. Power consumption is low at only 3.5 watts, with the sleek decorative finish of Dynamic Pro.
This range has self contained models with manual or auto test options, and has battery option of 1 hr or 3 hrs standby time. The DALI models come with 3 hrs of battery stand by time.
The batteries are fully sealed, maintenance free, and safety tested as per EN standards. This luminaire has TUV approval, and has RoHS (Restriction of Hazardous Substances) compliance.
All models of this series luminaires will maintain the same lux output during the entire emergency mode operation as specified (only the battery being used to power the lamp and fitting controls). This is achieved as our luminaires are working with “constant current” technology. The same current output is maintained even if the battery voltage goes down. The luminaire lamp current is totally cut off when the battery voltage falls below a certain pre-determined voltage. Leaving enough charge to power the control module
TECHNICAL SPECIFICATION | |
Rated Power Supply | 220-240VAC 50/60Hz |
Power consumption | Max. 4.7W |
Charge time | 24 hours |
Discharge duration | 1hour/3hours |
Changeover voltage | 144-187VAC |
Test facility | Manual test and AUTO test, DALI interface available |
Viewing distance | 24m(EU standard) |
Operation | Maintained and Non-maintained |

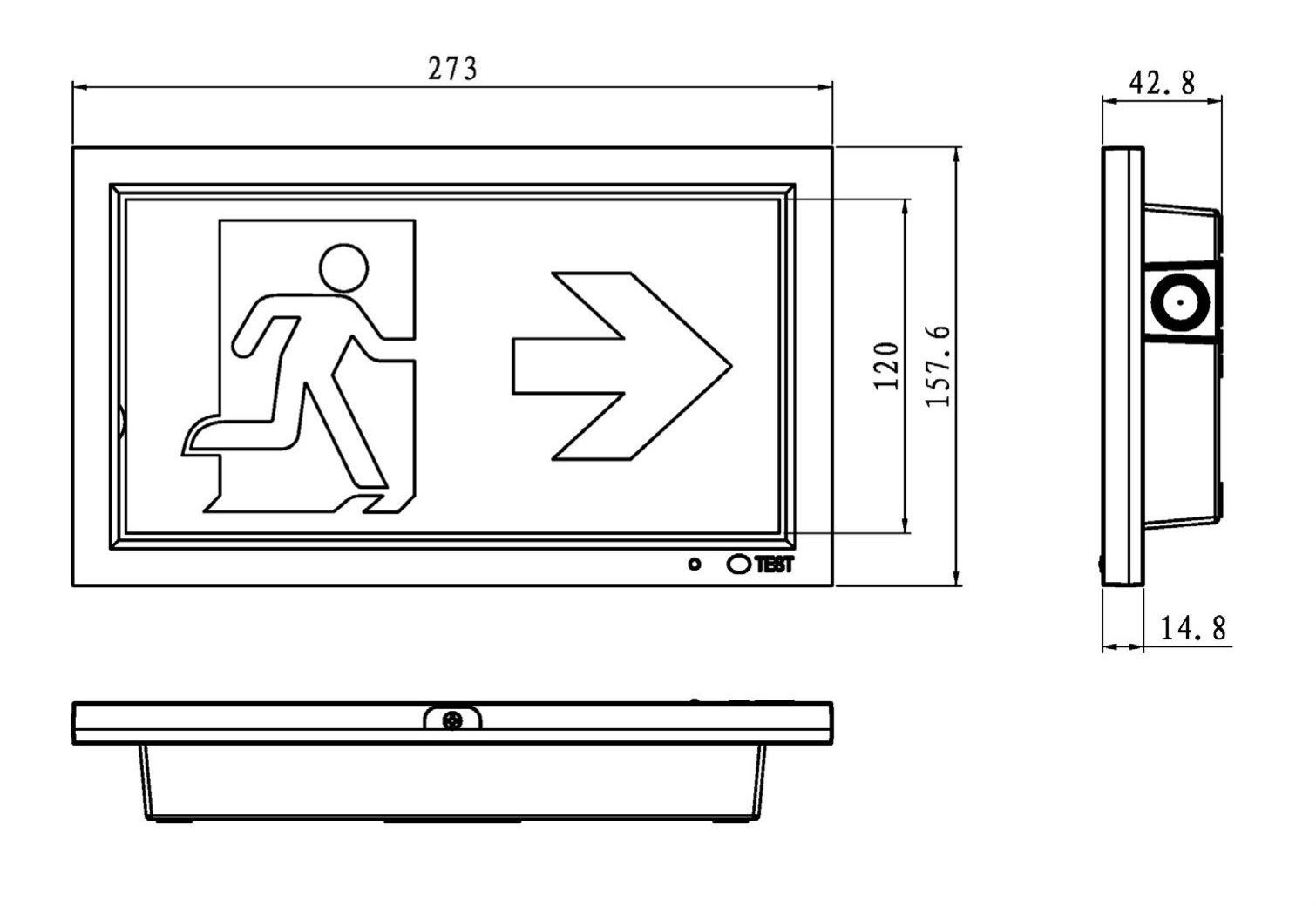

Mounting | Wall mounting and Flush mounting |
LED | SMD 2835, CCT 6000K, CRI>70 |
Luminance of white area on pictogram | Normal luminance 200cd/m2 high luminance 500cd/m2 |
Safe color of Pictogram | Pantone 336C or Pantone 348C optional |
Degree of protection | IP20 |
Insulation Class | Class II |
Housing material | ABS |
Ambient temperature | 0C…+40C |
Certification | CE, CB, TUV |
HEADER | ||||||
Part number | Alternative
part number |
Test type | Discharge Duration | Battery | Power
Consumption |
LED |
9112-1MH | ESA12/1H/MT/MH | Manual | 1H | Ni-Mh
3.6V 0.6Ah |
3.5W Max | SMD 2835
6000K 14LED |
9112-3MH | ESA12/3H/MT/MH | Manual | 3H | Ni-Mh
3.6V 0.9Ah |
3.5W Max | SMD 2835
6000K 14LED |
9112-1AH | ESA12/1H/AT/MH | AUTO | 1H | Ni-Mh
3.6V 0.6Ah |
3.5W Max | SMD 2835
6000K 14LED |
9112-3AH | ESA12/3H/AT/MH | AUTO | 3H | Ni-Mh
3.6V 0.9Ah |
3.5W Max | SMD 2835
6000K 14LED |
9112-3DH | ESA12/3H/DA/MH | DALI | 3H | Ni-Mh 3.6V 2Ah | 3.5W Max | SMD 2835
6000K 14LED |
